iMC Height & Slew Limiter
Intelligent Motion Control fully proportional Height & Slew Limiter with easy to use In-Cab 4.3" Display with spoken word reducing In-cab sounders, cab confusion and operator fatigue
Features & Functionality
BRAND NEW “Voice Active” warning system reducing In-cab sounders reducing operator fatigue
Proportional Valves for the motion cut with manual override as 'standard'
Non OEM Specific, can be installed onto any manufactures piece of plant
Easy to use and intuitive MMi with a clear 4.3” colour In-Cab Display
Full smart Slew Limiting adjustable via the In-Cab Display
Smart Height Limiting with Gyro compensated Angle Sensors
3D Limitation anywhere with the working envelope
Optional ‘Limits Active’ output for Magenta Beacon
Minimum Reach Control aiding Cab protection
Maximum Reach Control & Cab protection
Supervisor Key Switch as 'standard'
Optional Blade Monitoring & Control
Corridor setup & Limitations
Data Logging as 'standard'
Dig Depth control
Virtual Walls

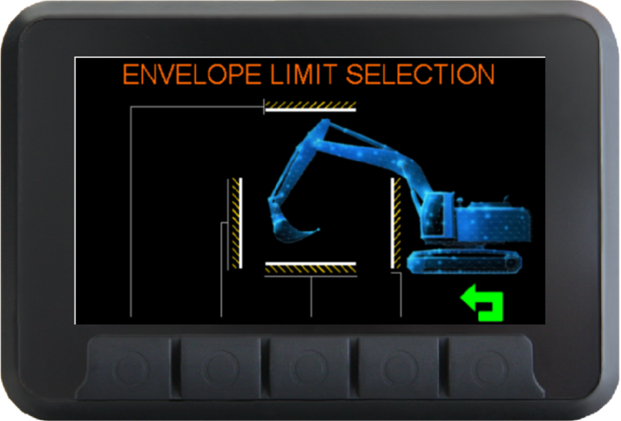

Envelope Limit Selection
From the main screen you can simply select the limits menu and then select the required limit function.

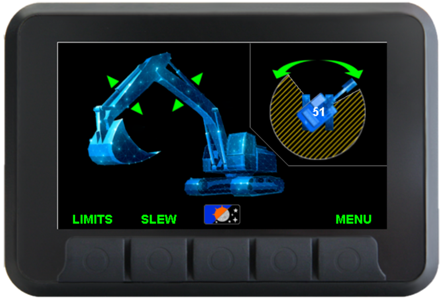

Main Screen
Envelope Limits Selection

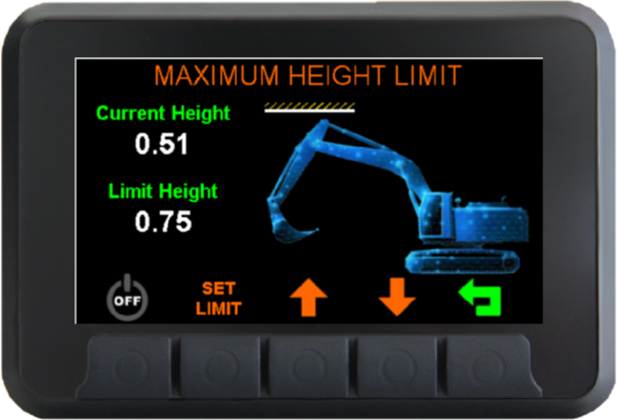

Height Limit setting

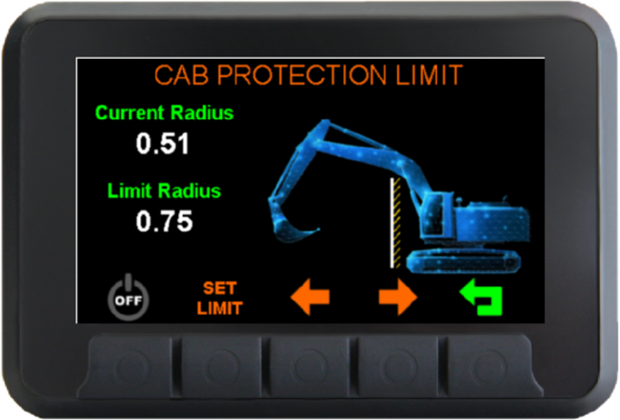

Cab Protection Setting

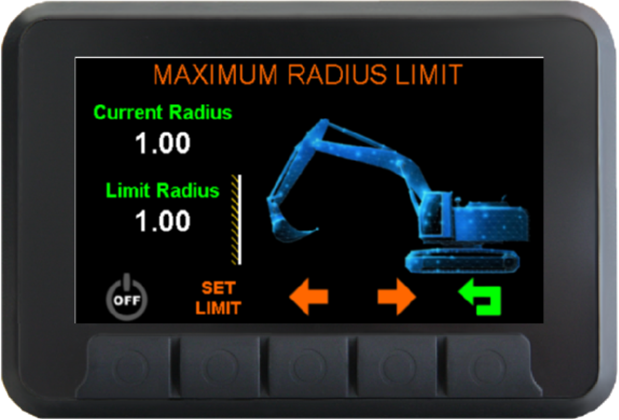

Maximum Radius Limit setting

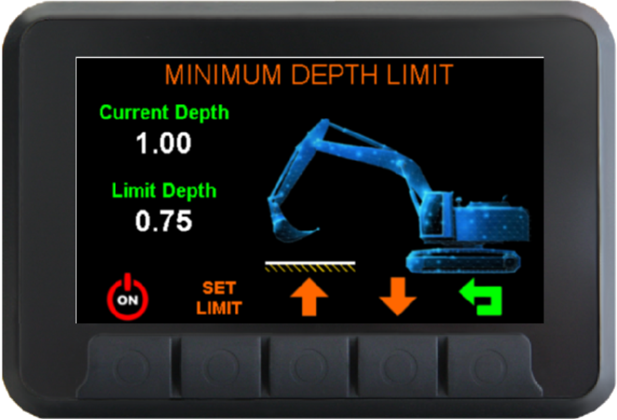

Minimum Depth Limit setting

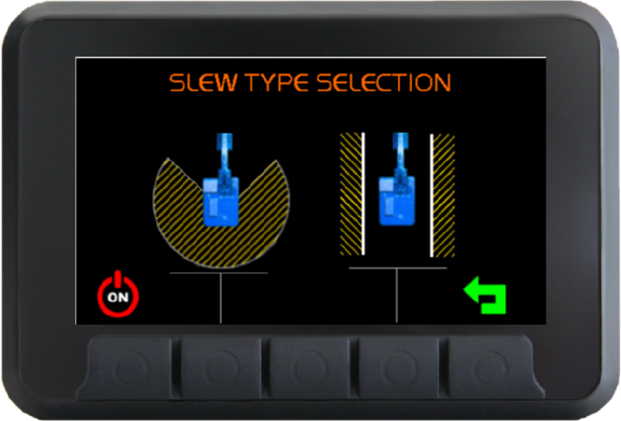

Slew type selection

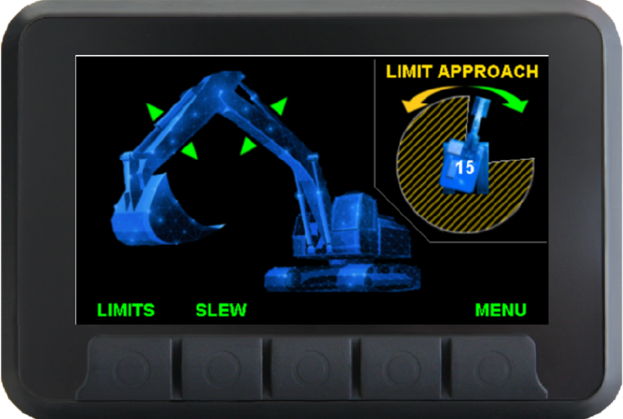

Angular Slew
Select Angular Slew and follow the clear and easy to understand on screen instructions to set an Angular Slew Limit
Virtual Wall
Each wall can be individually set by adjusting the distance using the directional arrows. A virtual corridor can be set by turning ON both walls.
Wall Limits are parallel to the machine tracks at 0°
Slew Limit active
Clear to see 'Safe', 'Approach to limit' & 'Limit reached' aided with 'Voice Active'

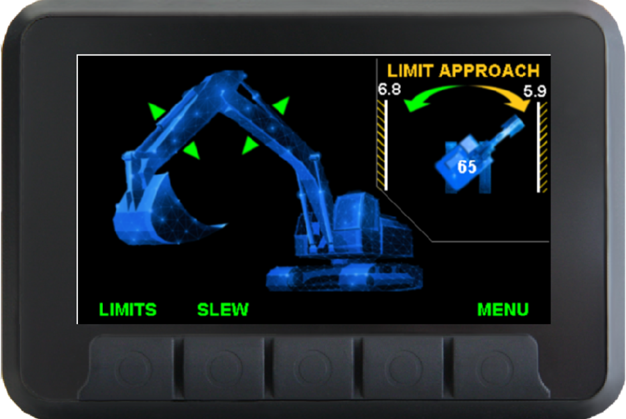

Angular Slew Virtual Wall

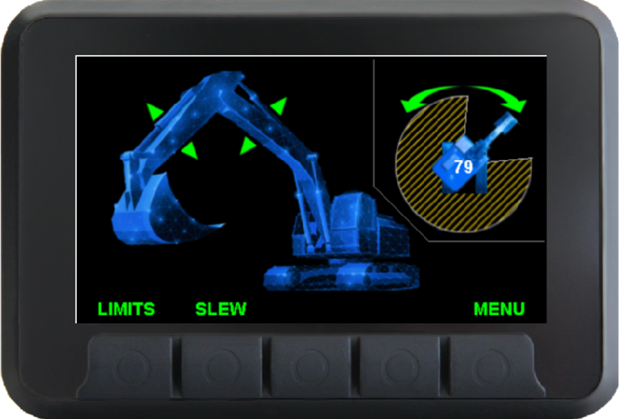

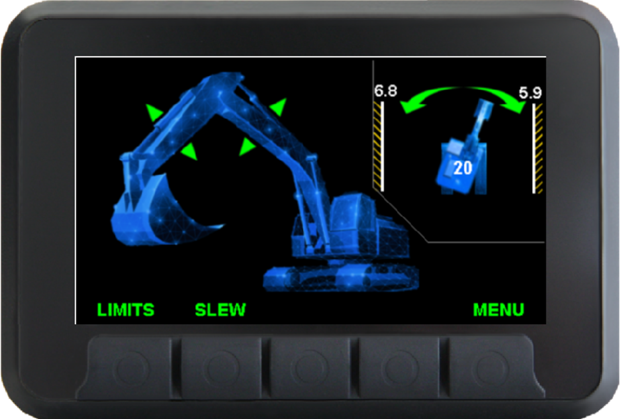

Safe
Approach to limit

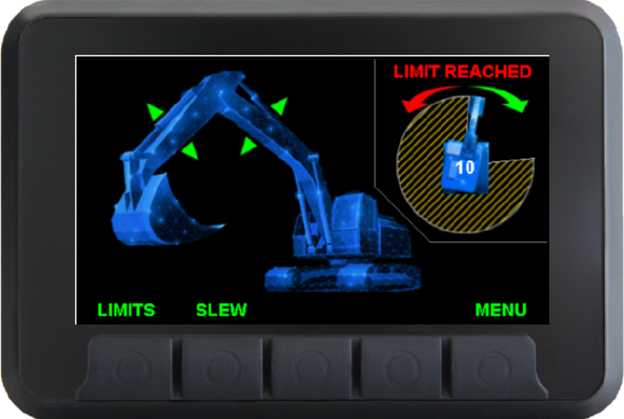

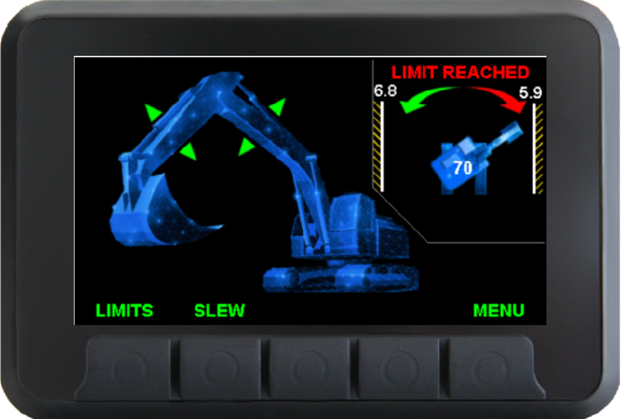

Limit reached
